Vapcell 14500 F12 1250mah 3A

Vapcell F12 14500 1250mah 3A

Specification:

u Model: F12

u Size: 14.0±0.2*49.0±0.3mm

u Typical Capacity: 1250mAh (0.2C discharge)

u Min capacity: 1150mAh (0.2C discharge)

u Nominal voltage: 3.60V

u Max Continuous Discharge Current: 3A

u End-of-charge voltage: 4.20V

u End-of-discharge Voltage: 2.5V

u Weight: 22g ( Appr)

u Internal resistance: 60mΩ ( Appr)（AC 1kHz）

u Standard Charge: 500mA,CCCV 50mA cut-off

u Quick Charge Current: 1000mA

Tips：

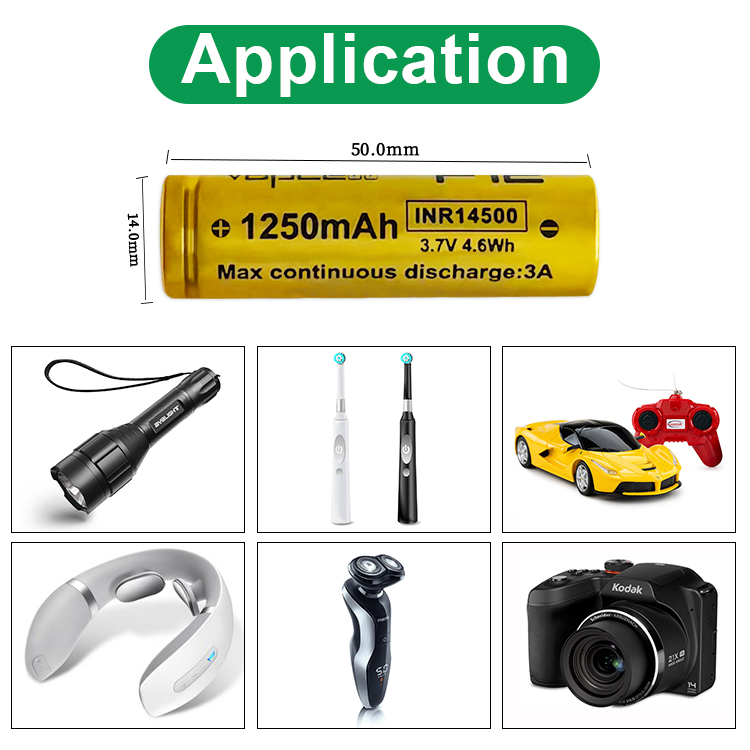

Button top can be added, and the size is 2-3mm longer than a standard 14500 cell like flat top & unprotected. The button top is widely required for flashlights, doorbells and other devices.

Discharge Graph:
