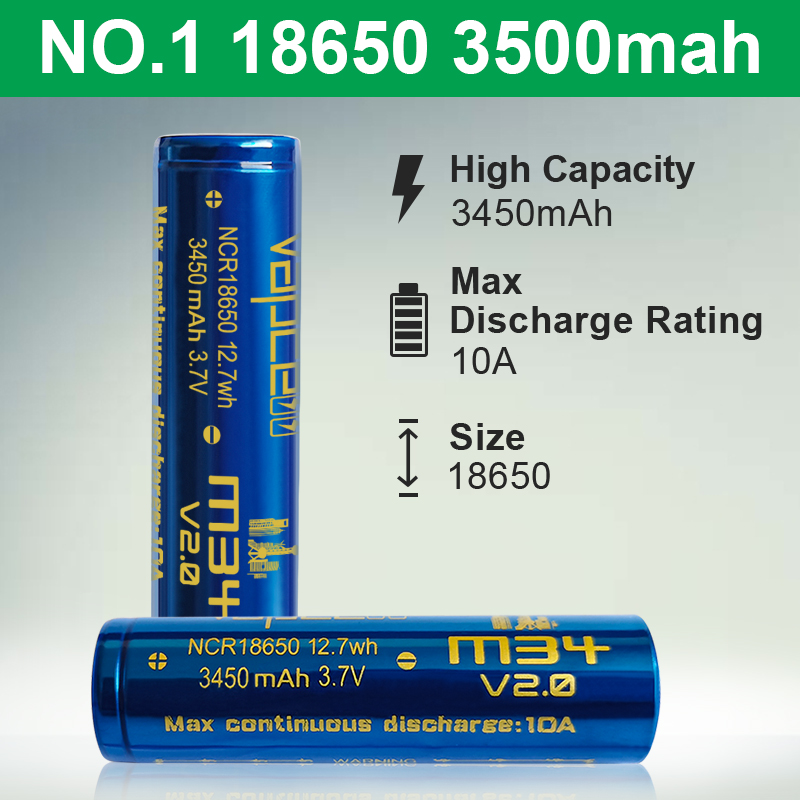

Vapcell M34 V2.0 18650 3450mah 10A

$ 0.00
Brand Vapcell
Series 18650
Model V2.0 M34
CDR 10A
Color Blue
Weight 49g
Chemistry NCR
Type flat top
Buy
Details

Vapcell M34 V2.0 18650 3400mah 10A


Specification:


u Model: M34 V2.0

u Size: 18.3*65.5mm

u Typical Capacity: 3450mAh (0.2C discharge)

u Min capacity: 3350mAh (0.2C discharge)

u Nominal voltage: 3.60V

u Max Continuous Discharge Current: 10A

u End-of-charge voltage: 4.2V

u End-of-discharge Voltage: 2.5V

u Weight: 49g ( Appr)

u Internal resistance: 24mΩ   ( Appr)AC 1kHz

u Standard Charge: 1000mA,CCCV 100mA cut-off

u Quick Charge Current: 2000mA



Tips


Button top can be added, and the size is 2-3mm longer than a standard 18650 cell like flat top & unprotected. The button top is widely required for flashlights, doorbells and other devices.


Discharge Graph:


M34 V2.0-1.bmpM34 V2.0-2.bmpM34 V2.0.bmp

M34 V2.0 -1.jpgM34 V2.0 -2.jpgM34 V2.0 -3.jpgM34 V2.0 -4.jpgM34 V2.0 -5.jpg
